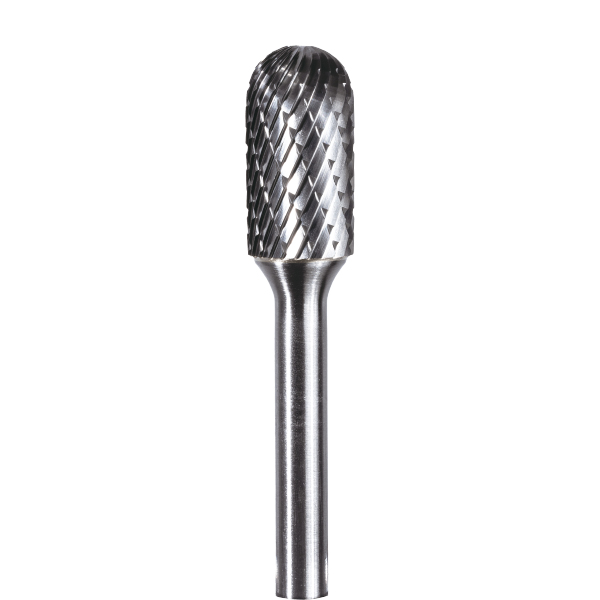

WRC型-球头圆柱旋转锉
刀柄尺寸：
- ⌀3.0mm
- 标准型
- *可选用 ⌀8.0mm
- 刀柄长度 100mm
- 刀柄长度 150mm
根据需要, 可进行Cer-T 镀层处理
旋转挫的切削速度请查阅这里

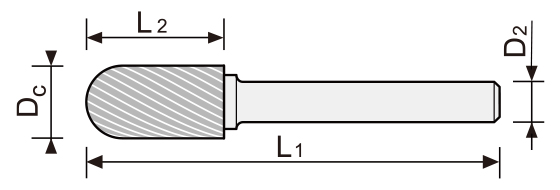

| Tools No. |
Dc |
L2 |
D2 |
L1 |
刀齿类型 |
| 1 |
2 |
3 |
4 |
5 |
6 |
| C0413M03 |
4.0 |
12.7 |
3 |
51 |
|
√ |
√ |
√ |
√ |
√ |
| C0416M06 |
4.0 |
16 |
6 |
61 |
|
√ |
√ |
√ |
√ |
√ |
| C0513M03 |
5.0 |
12.7 |
3 |
51 |
|
√ |
√ |
√ |
√ |
√ |
| C0516M06 |
5.0 |
16 |
6 |
61 |
|
√ |
√ |
√ |
√ |
√ |
| C0613M03 |
6.3 |
12.7 |
3 |
51 |
|
√ |
√ |
√ |
√ |
√ |
| C0616M06 |
6.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
√ |
| C0618M06 |
6.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
| *C0818M06 |
8.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
| SC-2M |
7.9 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
| *C0820M06 |
8.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
| SC-3M |
9.5 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
| *C1020M06 |
10.0 |
25 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
| *SC-4M |
11.1 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
| *C1225M06 |
12.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
| *SC-5M |
12.7 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
| *C1625M06 |
16.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
| * SC-7M |
19.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
| * SC-9M |
25.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
