Material |
Solid Carbide |
Cer-T Coating |
Cut type |
|---|---|---|---|
|
< 400N/mm2 |
800-1000 |
800-1000 |
|
|
< 705N/mm2 |
600-800 |
800-1000 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
< 400N/mm2 |
650-800 |
650-1000 |
|
|
< 850N/mm2 |
500-650 |
600-800 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
< 705N/mm2 |
500-650 |
600-800 |
|
|
< 1125N/mm2 |
400-500 |
400-600 |
|
|
< 46 HRC |
200-450 |
300-500 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
< 850N/mm2 |
450-650 |
500-750 |
|
|
< 1125N/mm2 |
350-500 |
400-600 |
|
|
< 46 HRC |
250-350 |
250-500 |
|
|
< 418 HB |
200-350 |
300-450 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
< 1125N/mm2 |
350-600 |
400-600 |
|
|
< 1450N/mm2 |
250-300 |
250-400 |
|
|
< 2050N/mm2 |
150-250 |
150-300 |
|
|
< 66HRC |
150-300 |
200-400 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
< 705N/mm2 |
650-800 |
650-1000 |
|
|
< 1125N/mm2 |
300-500 |
400-600 |
|
|
< 46HRC |
200-450 |
300-500 |
|
|
Titan Titanlegierungen |
max = 2000 U/min. |
||
|
* Attention! Titanium and Titanium alloys max. n = 2000 rpm |
|||
|

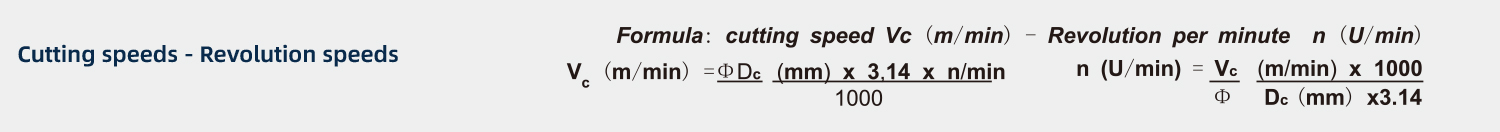

Vc |
Dc m/min |
|||||||||
|
2, 35 |
3, 00 |
4, 00 |
5, 00 |
6, 00 |
8, 00 |
10, 00 |
12, 00 |
16, 00 |
20, 00 |
|
|
Revolution (rpm) |
||||||||||
|
100 |
13550 |
10616 |
7962 |
6369 |
5308 |
3981 |
3185 |
2654 |
1990 |
1592 |
|
150 |
20325 |
15924 |
11943 |
9554 |
7962 |
5971 |
4777 |
3981 |
2986 |
2389 |
|
200 |
27100 |
21231 |
15924 |
12739 |
10616 |
7962 |
6369 |
5308 |
3981 |
3185 |
|
250 |
33875 |
26539 |
19904 |
15924 |
13270 |
9952 |
7962 |
6635 |
4976 |
3981 |
|
300 |
40650 |
31847 |
23885 |
19108 |
15924 |
11943 |
9554 |
7962 |
5971 |
4777 |
|
350 |
47425 |
37155 |
27866 |
22293 |
18577 |
13933 |
11146 |
9289 |
6967 |
5573 |
|
400 |
54201 |
42463 |
31847 |
25478 |
21231 |
15924 |
12739 |
10616 |
7962 |
6369 |
|
500 |
67751 |
53079 |
39809 |
31847 |
26539 |
19904 |
15924 |
13270 |
9952 |
7962 |
|
600 |
81301 |
63694 |
47771 |
38217 |
31847 |
23885 |
19108 |
15924 |
11943 |
9554 |
|
700 |
94851 |
74310 |
55732 |
44586 |
37155 |
27866 |
22293 |
18577 |
13933 |
11146 |
|
800 |
108401 |
84926 |
63694 |
50955 |
42463 |
31847 |
25478 |
21231 |
15924 |
12739 |
|
900 |
121951 |
95541 |
71656 |
57325 |
47771 |
35828 |
28662 |
23885 |
17914 |
14331 |
|
1000 |
135501 |
106157 |
79618 |
63694 |
53079 |
39809 |
31847 |
26539 |
19904 |
15924 |
|
* Attention! Titanium and Titanium alloys max. n = 2000 rpm |
||||||||||
