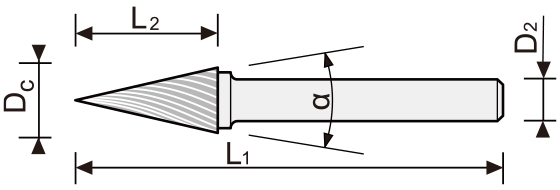

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
M0411D03 |
4.0 |
11 |
3 |
49 |
|
√ |
√ |
√ |
√ |
√ |
|
M0513M03 |
5.0 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
M0613M03 |
6.3 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
M0613M06 |
6.0 |
12.7 |
6 |
58 |
√ |
√ |
√ |
√ |
√ |
|
|
M0619M06 |
6.0 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
|
|
M0625M06 |
6.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
|
|
*M0818D06 |
8.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
|
|
*SM-4M |
9.5 |
16 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
|
|
*M1020D06 |
10.0 |
16 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
|
|
*M1225D06 |
12.0 |
22 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
|
|
*SM-5M |
12.7 |
22 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
|
|
*M1625M06 |
16.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
|
