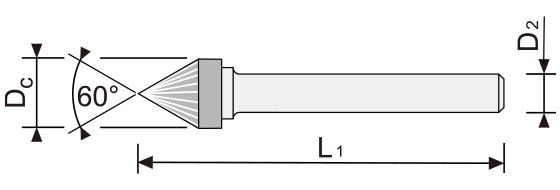

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
J0604M03 |
6.0 |
4 |
3 |
44 |
|
√ |
√ |
√ |
√ |
√ |
|
J0604M06 |
6.0 |
4 |
6 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
J0806M06 |
8.0 |
6 |
6 |
53 |
√ |
√ |
√ |
√ |
√ |
|
|
* SJ-3M |
9.5 |
8 |
6 |
55 |
√ |
√ |
√ |
√ |
√ |
|
|
* SJ-5M |
12.7 |
11 |
6 |
59 |
√ |
√ |
√ |
√ |
√ |
|
|
* SJ-6M |
16.0 |
14.5 |
6 |
62 |
√ |
√ |
√ |
√ |
√ |
|
|
* SJ-7M |
19.0 |
17.5 |
6 |
66 |
√ |
√ |
√ |
√ |
√ |
|
|
* SJ-9M |
25.0 |
24.5 |
6 |
69 |
√ |
√ |
√ |
√ |
√ |
|
