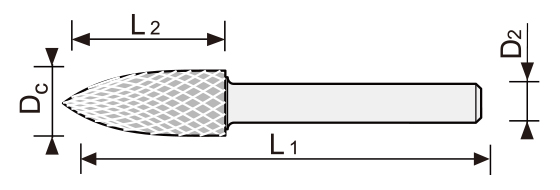

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
H0408M03 |
4.0 |
8 |
3 |
46 |
|
√ |
√ |
√ |
√ |
√ |
|
H0510M03 |
5.0 |
9.5 |
3 |
47 |
√ |
√ |
√ |
√ |
√ |
|
|
H0618M03 |
6.0 |
18 |
3 |
56 |
√ |
√ |
√ |
√ |
√ |
|
|
H0618M06 |
6.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
|
|
H0820M06 |
8.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
|
|
SH-2M |
7.9 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
|
|
*H1025M06 |
10.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
|
|
*H1232M06 |
12.0 |
32 |
6 |
77 |
√ |
√ |
√ |
√ |
√ |
|
|
*SH-5M |
12.7 |
32 |
6 |
77 |
√ |
√ |
√ |
√ |
√ |
|
|
*H1636M06 |
16.0 |
36 |
6 |
81 |
√ |
√ |
√ |
√ |
√ |
|
|
*SH-7M |
19.0 |
41 |
6 |
86 |
√ |
√ |
√ |
√ |
√ |
|
