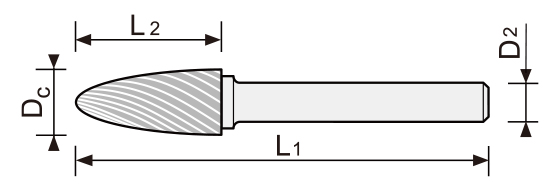

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
F0413M03 |
4.0 |
12.7 |
3 |
51 |
|
√ |
√ |
√ |
√ |
√ |
|
F0513M03 |
5.0 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
F0613M03 |
6.3 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
F0616M06 |
6.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
√ |
|
F0618M06 |
6.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*F0818M06 |
8.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*F0820M06 |
8.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-3M |
9.5 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*F1020M06 |
10.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-13M |
12.7 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-4M |
11.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*F1225M06 |
12.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-5M |
12.7 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*F1625M06 |
16.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-7M |
19.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-14M |
19.0 |
32 |
6 |
77 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SF-15M |
19.0 |
38 |
6 |
83 |
√ |
√ |
√ |
√ |
√ |
√ |
