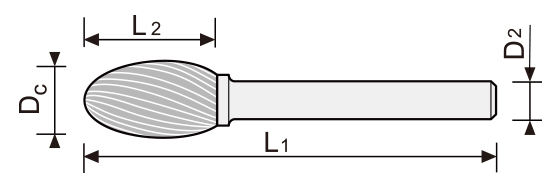

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
E0406M03 |
4.0 |
6 |
3 |
44 |
|
√ |
√ |
√ |
√ |
√ |
|
E0507M03 |
5.0 |
7 |
3 |
45 |
√ |
√ |
√ |
√ |
√ |
|
|
SE-51M |
6.3 |
9.5 |
3 |
48 |
√ |
√ |
√ |
√ |
√ |
|
|
E0610M06 |
6.0 |
10 |
6 |
55 |
√ |
√ |
√ |
√ |
√ |
√ |
|
E0813M06 |
8.0 |
13 |
6 |
58 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SE-3M |
9.5 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*E1016M06 |
10.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*E1220M06 |
12.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SE-5M |
12.7 |
22 |
6 |
67 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*E1625M06 |
16.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SE-7M |
19.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
