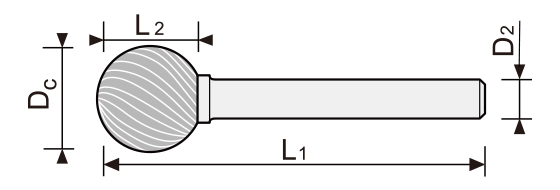

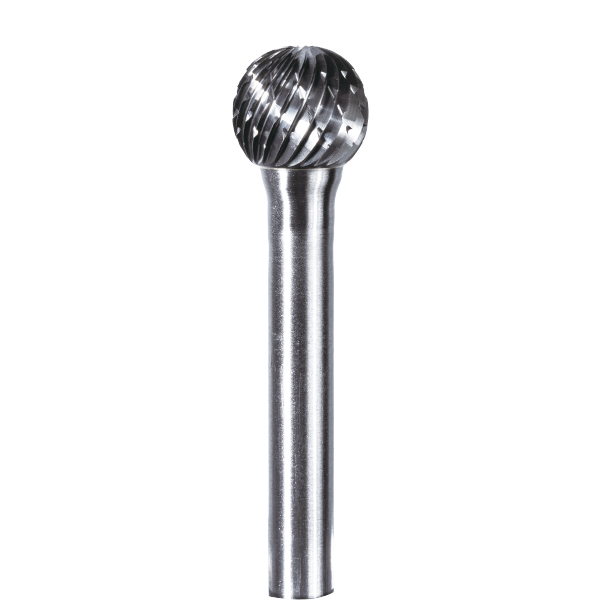

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
D0403M03 |
4.0 |
3.4 |
3 |
41 |
|
√ |
√ |
√ |
√ |
√ |
|
D0504M03 |
5.0 |
4 |
3 |
42 |
√ |
√ |
√ |
√ |
√ |
|
|
D0605M03 |
6.3 |
5 |
3 |
43 |
√ |
√ |
√ |
√ |
√ |
|
|
D0605M06 |
6.0 |
5 |
6 |
50 |
√ |
√ |
√ |
√ |
√ |
√ |
|
D0807M06 |
8.0 |
7 |
6 |
52 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SD-3M |
9.5 |
8 |
6 |
53 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*D1009M06 |
10.0 |
9 |
6 |
54 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*D1211M06 |
12.0 |
10.8 |
6 |
55 |
√ |
√ |
√ |
√ |
√ |
√ |
|
SD-5M |
12.7 |
11 |
6 |
56 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*D1614M06 |
16.0 |
14 |
6 |
59 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SD-7M |
19.0 |
16 |
6 |
62 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SD-9M |
25.0 |
21 |
6 |
66 |
√ |
√ |
√ |
√ |
√ |
√ |
