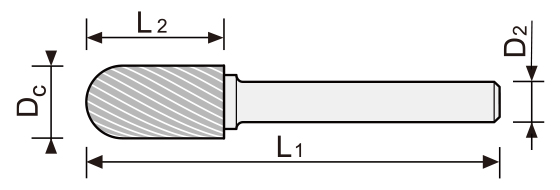

Shank dimensions
Cer-T coating upon request
|
Tools No. |
Dc |
L2 |
D2 |
L1 |
Cut type |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|||||
|
C0413M03 |
4.0 |
12.7 |
3 |
51 |
|
√ |
√ |
√ |
√ |
√ |
|
C0416M06 |
4.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
|
|
C0513M03 |
5.0 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
C0516M06 |
5.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
|
|
C0613M03 |
6.3 |
12.7 |
3 |
51 |
√ |
√ |
√ |
√ |
√ |
|
|
C0616M06 |
6.0 |
16 |
6 |
61 |
√ |
√ |
√ |
√ |
√ |
√ |
|
C0618M06 |
6.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*C0818M06 |
8.0 |
18 |
6 |
63 |
√ |
√ |
√ |
√ |
√ |
√ |
|
SC-2M |
7.9 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*C0820M06 |
8.0 |
20 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
|
SC-3M |
9.5 |
19 |
6 |
64 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*C1020M06 |
10.0 |
25 |
6 |
65 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SC-4M |
11.1 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*C1225M06 |
12.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*SC-5M |
12.7 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
*C1625M06 |
16.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
* SC-7M |
19.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
* SC-9M |
25.0 |
25 |
6 |
70 |
√ |
√ |
√ |
√ |
√ |
√ |
