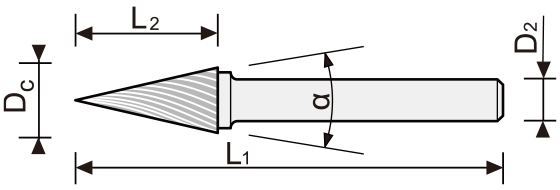

Shank dimensions:
Cer-T coating upon request
|
Tools No. |
D1 |
L2 |
D2 |
α |
|
SM-41 |
1/8 |
11/32 |
1/8 |
12° |
|
SM-42 |
1/8 |
7/16 |
1/8 |
14° |
|
SM-42L2 |
1/8 |
7/16 |
1/8 |
14° |
|
SM-42L3 |
1/8 |
7/16 |
1/8 |
14° |
|
SM-43 |
1/8 |
5/8 |
1/8 |
7° |
|
SM-53 |
3/16 |
1/2 |
1/8 |
16° |
|
SM-1 |
1/4 |
1/2 |
1/4 |
22° |
|
Tools No. |
D1 |
L2 |
D2 |
α |
|
SM-51 |
1/4 |
1/2 |
1/8 |
22° |
|
SM-2 |
1/4 |
3/4 |
1/4 |
14° |
|
SM-3 |
1/4 |
1 |
1/4 |
10° |
|
SM-4 |
3/8 |
5/8 |
1/4 |
28° |
|
SM-5 |
1/2 |
7/8 |
1/4 |
28° |
|
SM-6 |
5/8 |
1 |
1/4 |
31° |
